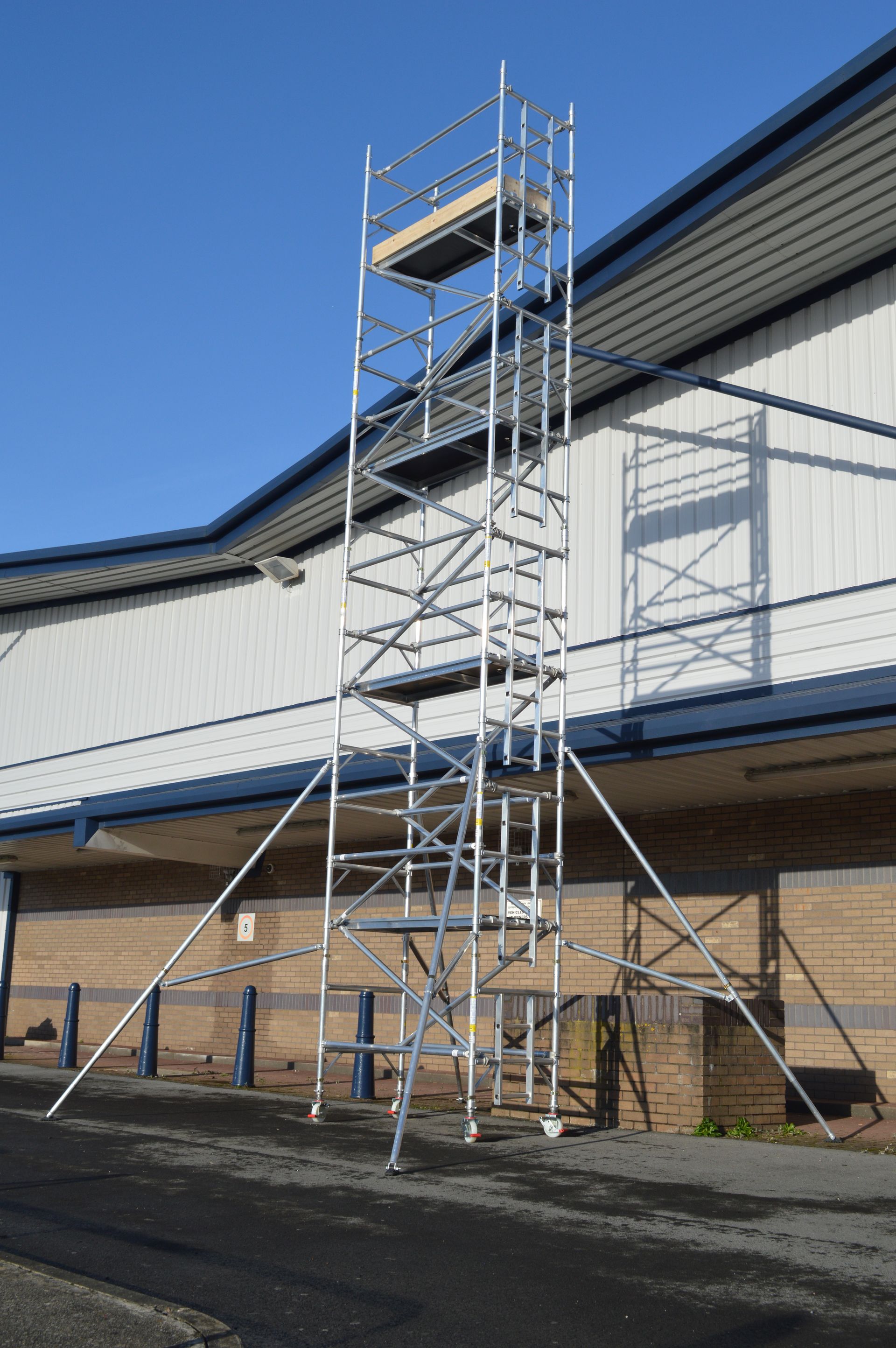

HiLyte500 Single Width Tower System


The HiLyte500 Single Width Tower System offers a versatile, compact solution for industrial tasks requiring secure access at height. This UK-manufactured aluminium tower system is designed for efficient setup and transportation, to provide the ultimate combination of strength and portability.
Key Benefits
- Quick Assembly: Features spring-loaded tower claws for fast, tool-free setup.
- Maximum Load Capacity: The maximum safe working load for the tower is 950kg, ideal for demanding industrial work.
- Heavy-Duty Decks: The individual decks have a maximum capacity of 275kg.
- Compact & Portable: The 1800x850mm single-width design is easy to transport and store.
- Maximum Safety: Equipped with a dual on / off brake system for stability.
- Certified Safety: Certified BSEN1004-1:2020 standards for reliable and safe operation.
- Many Sizes Available: Platform heights from 1.2-12.2m, available as single or
double-width.
Available in 23 sizes
Code | Platform Height mm | Width mm | Length mm |
---|---|---|---|
H500/18/SW/1.2 | 1200 | 850 | 1800 |
H500/18/SW/1.7 | 1700 | 850 | 1800 |
H500/18/SW/2.2 | 2200 | 850 | 1800 |
H500/18/SW/2.7 | 2700 | 850 | 1800 |
H500/18/SW/3.2 | 3200 | 850 | 1800 |
H500/18/SW/3.7 | 3700 | 850 | 1800 |
H500/18/SW/4.2 | 4200 | 850 | 1800 |
H500/18/SW/4.7 | 4700 | 850 | 1800 |
H500/18/SW/5.2 | 5200 | 850 | 1800 |
H500/18/SW/5.7 | 5700 | 850 | 1800 |
H500/18/SW/6.2 | 6200 | 850 | 1800 |
H500/18/SW/6.7 | 6700 | 850 | 1800 |
H500/18/SW/7.2 | 7200 | 850 | 1800 |
H500/18/SW/7.7 | 7700 | 850 | 1800 |
H500/18/SW/8.2 | 8200 | 850 | 1800 |
H500/18/SW/8.7 | 8700 | 850 | 1800 |
H500/18/SW/9.2 | 9200 | 850 | 1800 |
H500/18/SW/9.7 | 9700 | 850 | 1800 |
H500/18/SW/10.2 | 10200 | 850 | 1800 |
H500/18/SW/10.7 | 10700 | 850 | 1800 |
H500/18/SW/11.2 | 11200 | 850 | 1800 |
H500/18/SW/11.7 | 11700 | 850 | 1800 |
H500/18/SW/12.2 | 12200 | 850 | 1800 |
