General Trade Extension Ladders

NGLT/NBD Series

A long ladder is sitting on top of a white surface.
A logo for lyte en131 professional is shown on a white background.
A logo for bsi iso 9001 quality management systems certified

Elevate your working at height experience with the NGLT/NBD General Trade Extension Ladders, combining lightweight design, robust construction, and enhanced safety features for frequent trade use or domestic use.

Key Benefits

  • Lightweight Design: Easy to transport and manoeuvre, reducing user fatigue.
  • Comfortable Climbing: Strengthened D-shaped rungs ensure a comfortable grip and footing.
  • Enhanced Stability: High-quality stabiliser bar with a larger footprint to minimise sideways slips.
  • Durable Construction: Made in the UK from premium aluminium and box section stiles for long-lasting use.
  • Eco-Friendly Materials: Our rungs are made from UK-sourced Recycled Low-Carbon Aluminium 4.0, ensuring reduced environmental impact.
  • Many Sizes Available: Available in 2 and 3 sections to suit a variety of tasks.
  • Maximum Load Capacity: 150kg - ideal for demanding trade applications.
  • Professional Certification: Certified to EN131-2, ensuring reliability and compliance with safety standards.

Available in 8 sizes

A ladder is sitting on a stand on a white background.
A long ladder is sitting on a white surface.
A long ladder is sitting on a white surface.
A long ladder is sitting on a white surface.
A long ladder is sitting on top of a white surface.
A ladder is sitting on top of a white surface.
A ladder is sitting on a stand on a white background.
A long ladder is sitting on top of a white surface.
View more
Code No. of Sections No. of Rungs Per Section Weight kg Closed Length mm Extended Length mm Max Standing Height mm* Approx. Working Height mm* Largest Ladder Section Width mm Smallest Ladder Section Width mm Stabiliser Width mm Individual Section Depth mm Full Ladder Depth mm Space Between Rungs mm

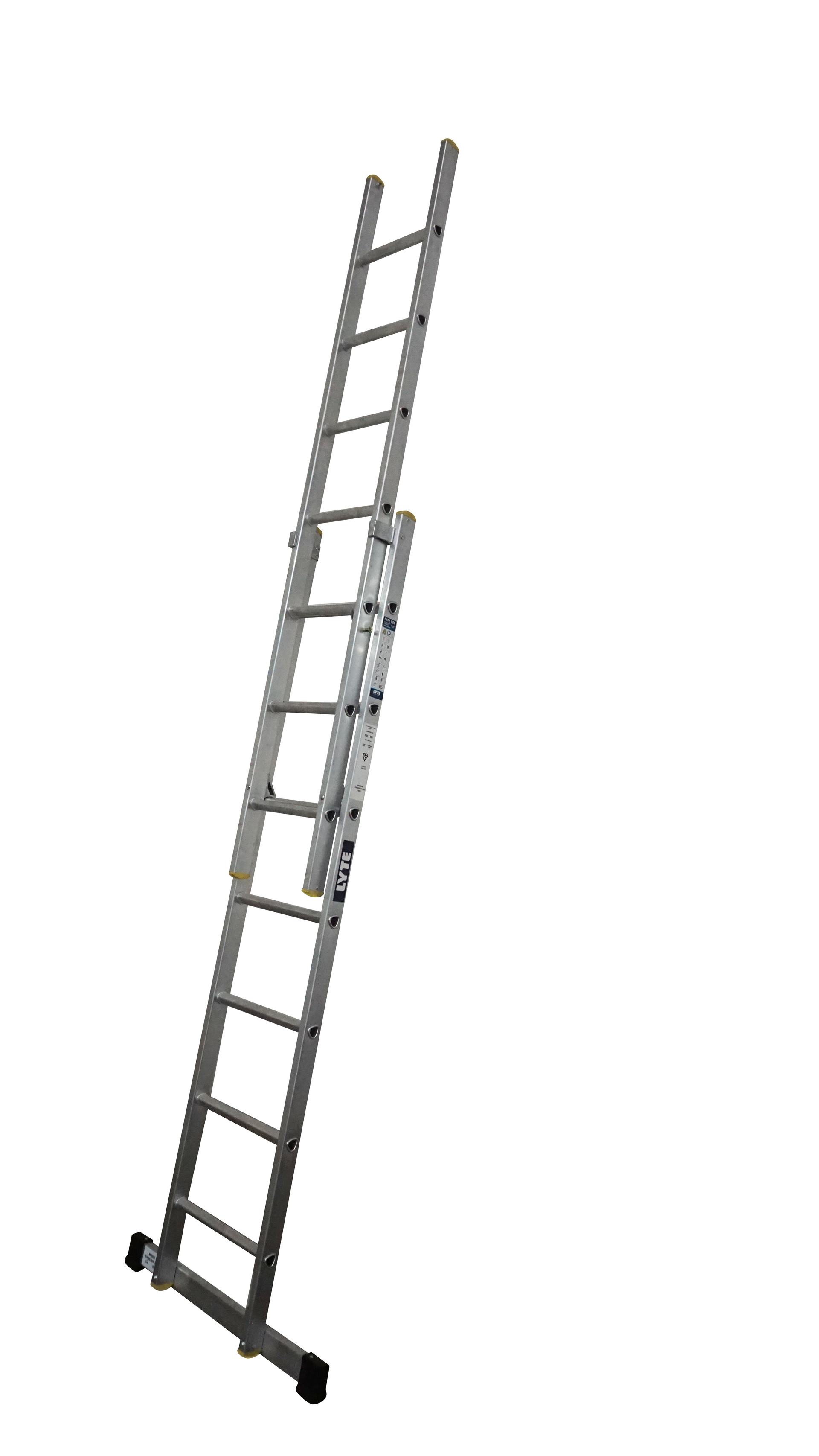

NGLT/NBD225 Double 7 8.70 2200 3290 2540 4290 405 337 1000 60 130 280

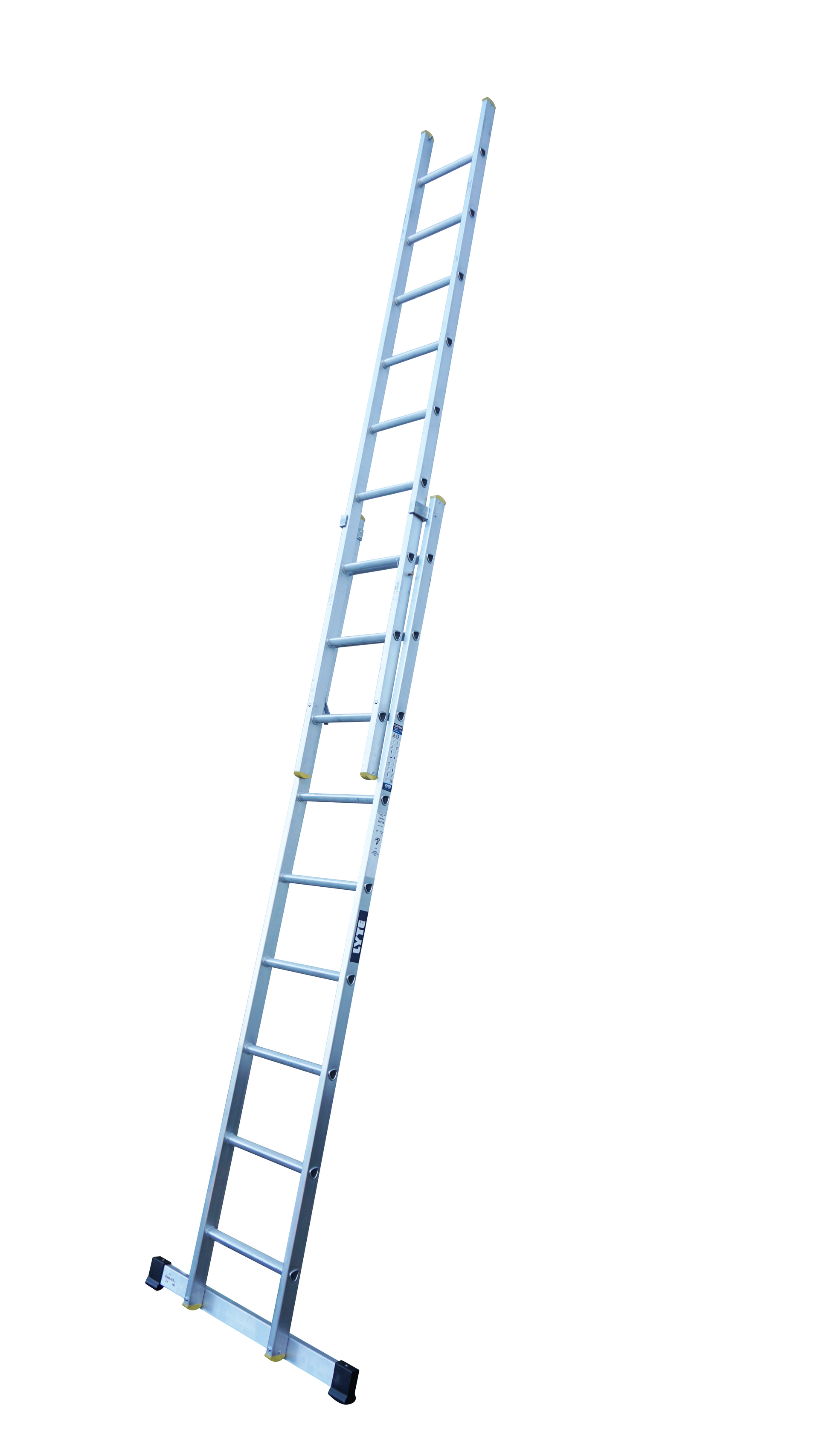

NGLT/NBD230 Double 9 10.40 2700 4370 3620 5370 405 337 1000 60 130 280

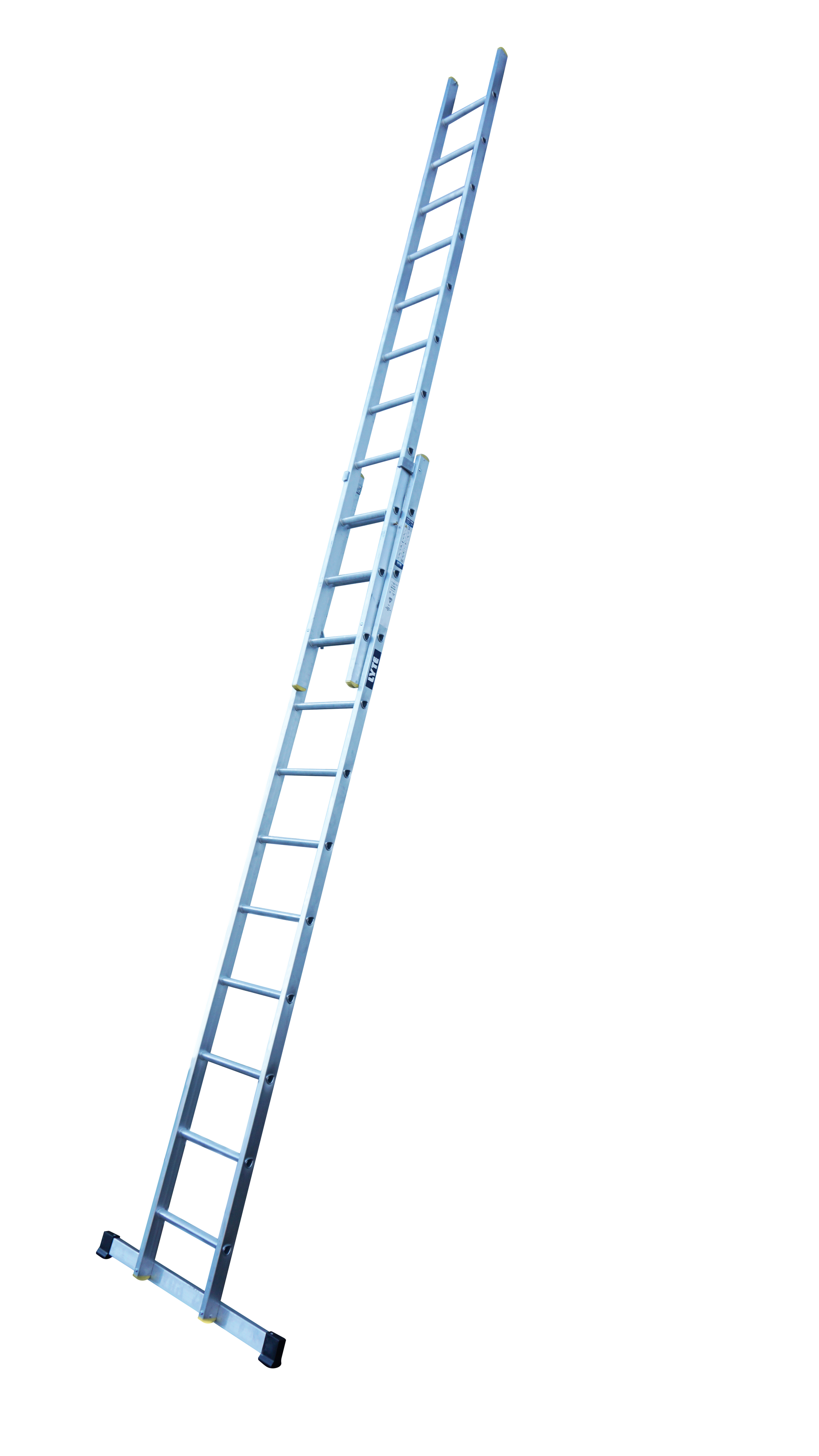

NGLT/NBD235 Double 11 13.00 3300 5600 4850 6600 405 337 1000 60 130 280

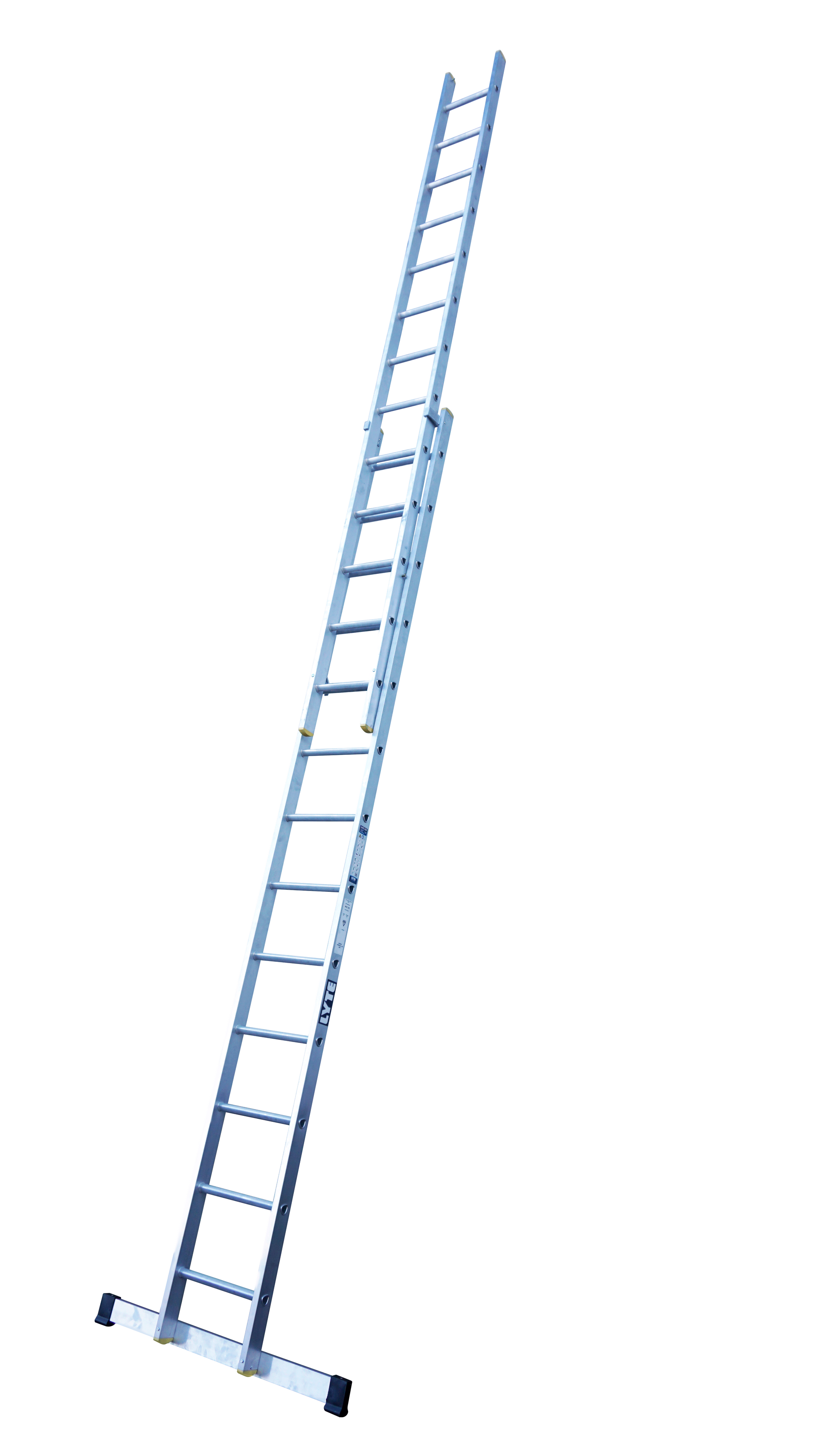

NGLT/NBD240 Double 13 17.00 3800 6600 5850 7600 405 337 1200 75 150 280

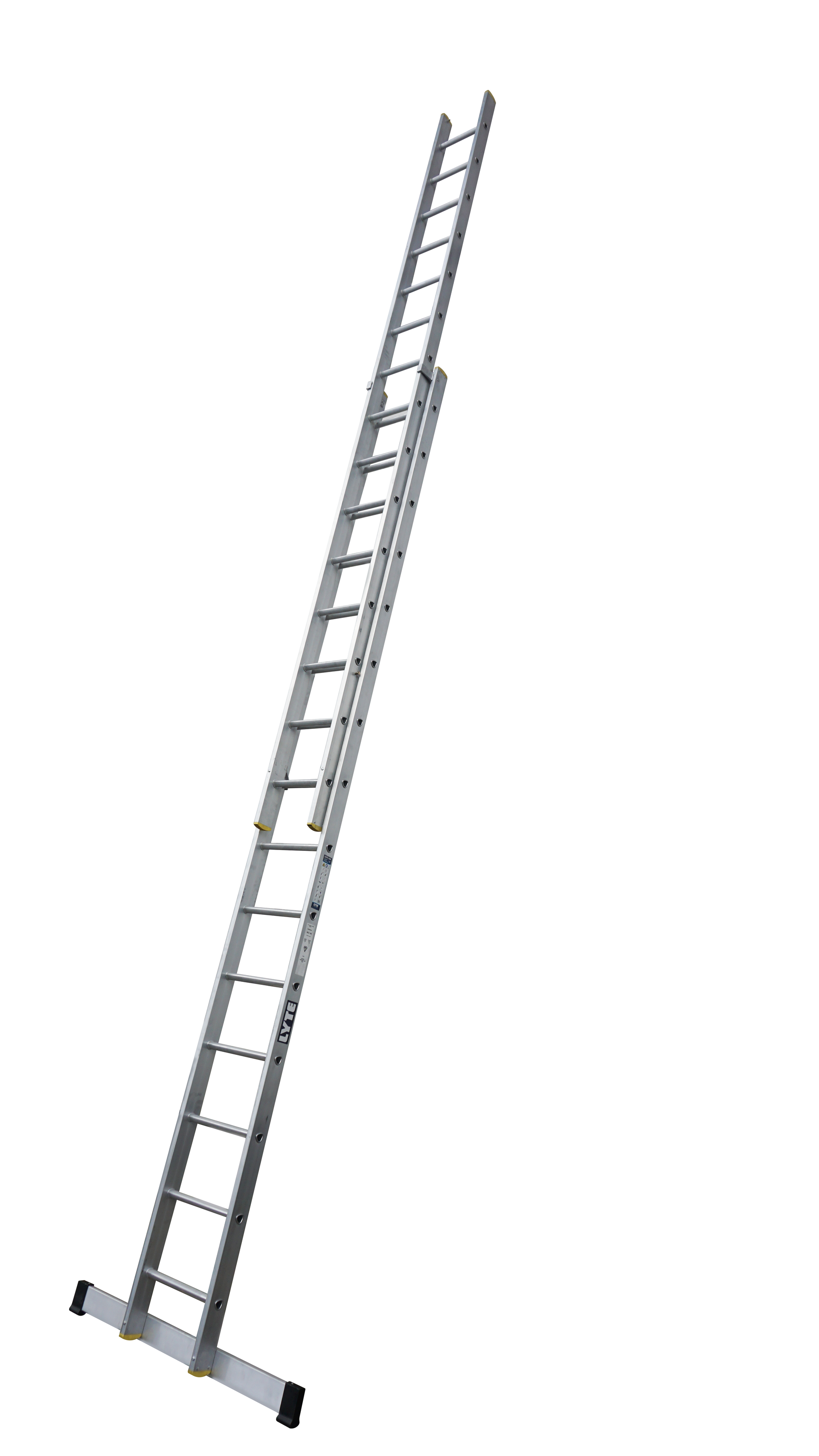

NGLT/NBD245 Double 15 20.20 4400 7720 6970 8720 405 337 1200 90 180 280

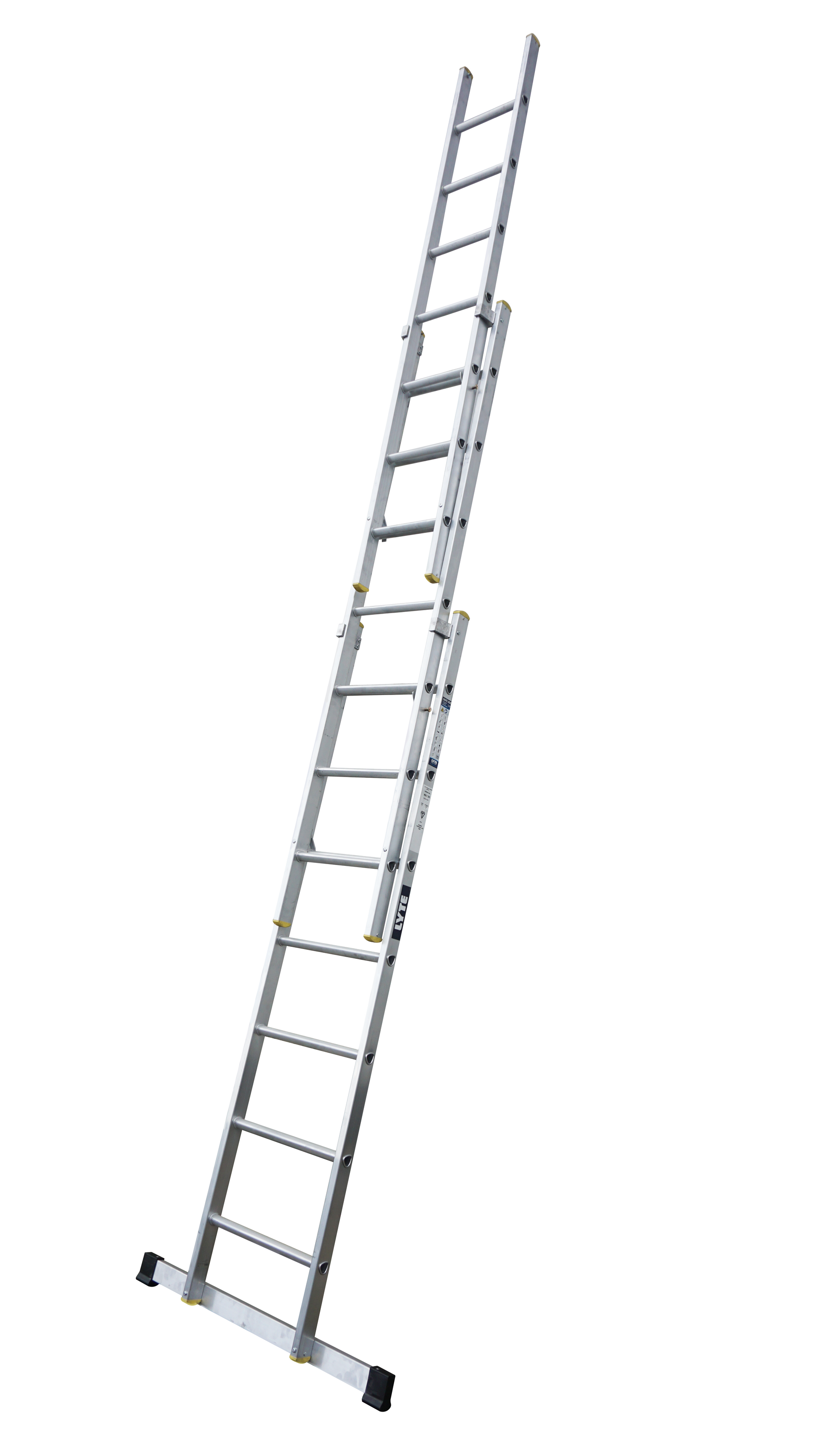

NGLT/NBD325 Triple 7 13.00 2200 4400 3650 5400 475 337 1000 60 190 280

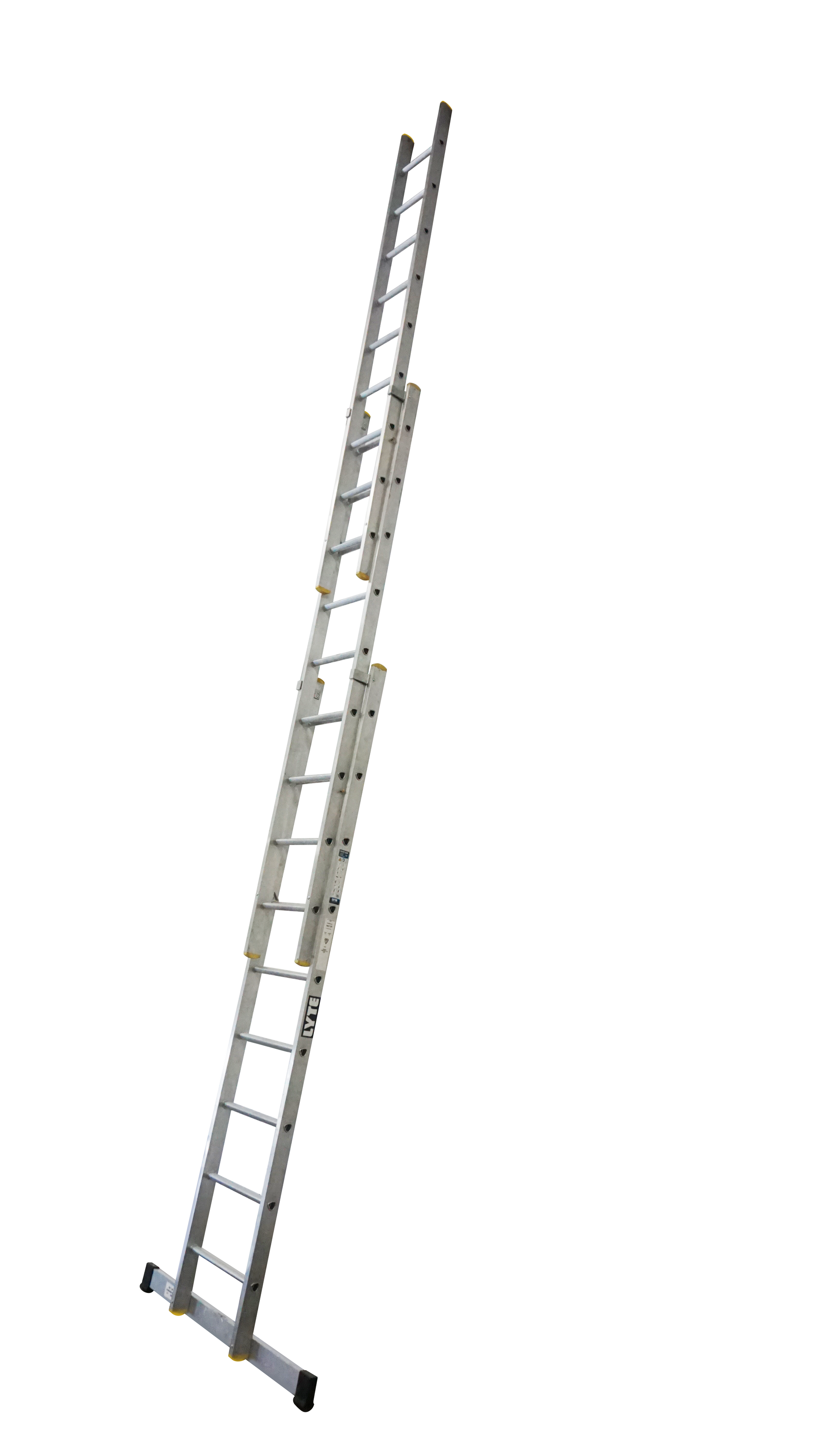

NGLT/NBD330 Triple 9 19.50 2700 6100 5350 7100 475 337 1200 75 210 280

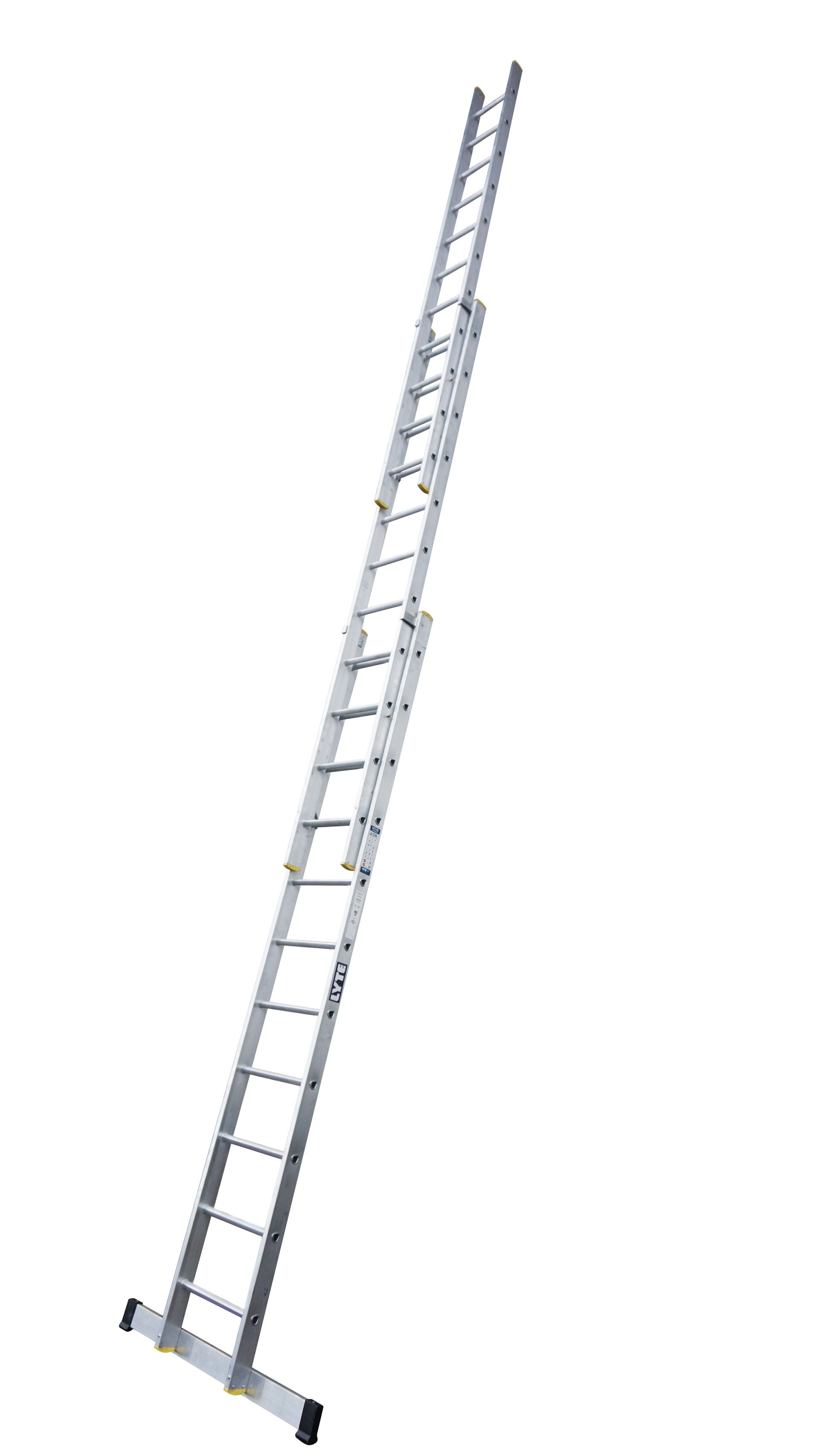

NGLT/NBD335 Triple 11 25.00 3300 7740 6990 8740 475 337 1200 90 240 280

*Where applicable, the Approx. Working Height is calculated by adding 1750m (5’8”) to the Max Standing Height. This assumes the ladder is positioned at a 75° angle.
